Fixing My Furnace With ChatGPT (A DIY Knowledge Bridge Story)

It was Saturday afternoon. I walked out of my office and headed upstairs and immediately thought "man, it's way colder up here than it should be." I hadn't noticed from my office because I run an electric heater to keep it fairly warm while I work.

I checked the thermostat. Set point: 68°F. Actual temp: 64°F. Status: heating...

Well, that's not good.

I walked over to an air vent. Cool air, no heat. This furnace is less than four years old, how could it already be having problems?

I ran down to the utility room and popped the cover off. There was an error code, or at least I assumed it was an error code: E2.1. I thought to myself, "I think I have the manual for this thing stuffed in a file cabinet somewhere." I'd just replaced the filter and done a furnace test last week knowing it'd be cold for the first time this year, this week. Why is this happening today?

Alright, time for the old tried and true. I flipped the switch on the furnace off and back on with the cover still off, listening and observing. Lots of clicks and whirrs, solenoids and fans doing their thing. But I never heard the hiss of gas I expected to hear.

I could probably spend 20 minutes looking for that manual. Or... I wonder.

I pulled up ChatGPT and started typing: "I have a high efficiency gas furnace. I don't think it's lighting properly. I see the screen in the furnace flashing tps, e2.1, Ht"

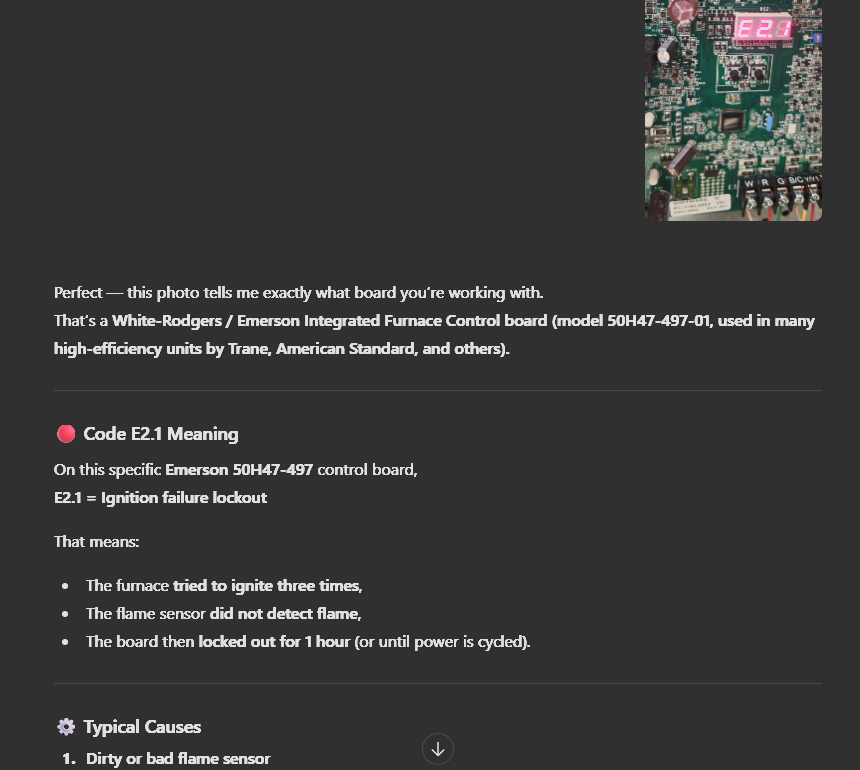

It gave back a quick breakdown of what to check. But I already knew most of this stuff, so let's see what it can actually do. I took a picture of the control board and sent it to ChatGPT.

BOOM. Now we're getting somewhere.

Forty-five minutes later, I had heat again. But more importantly, I had a clearer picture of where AI fits in the modern DIYer's toolkit and it's not where I expected.

The T-Shaped DIYer Problem

I'm what you might call a T-shaped person, deep expertise in one area (the vertical bar of the T) with broad working knowledge across many others (the horizontal bar). I picked up the term during some intelligent swarming training, but the concept stuck because it's exactly how I operate: deep knowledge in software and electronics, but broad working knowledge across many domains such as mechanical systems, electrical work, plumbing, HVAC basics.

I understand how a gas furnace works: inducer creates draft, pressure switch confirms, ignitor heats up, gas valve opens, burners light, flame sensor confirms flame.

But I didn't know:

• What voltage should be present at the gas valve during ignition
• The specific test sequence to isolate a valve vs. control board issue
• That the internal component is called a "poppet"
• Whether 26VAC at the valve terminals meant the valve was bad or the board was bad
• The specific failure modes of White-Rodgers integrated control boards

This is the gap where traditional Google searching becomes a time sink. I know enough to understand technical explanations but not enough to know what specifically to test. Search results either assume zero knowledge (watch this 20-minute intro to furnaces) or assume deep expertise (HVAC tech forums using insider terminology).

The Actual Flow

Here's how the troubleshooting actually progressed, showing where my knowledge ended and AI-assisted domain expertise began:

Initial Response: Building the Framework

ChatGPT identified E2.1 as ignition failure lockout and provided a diagnostic hierarchy. This I mostly knew, but having it laid out systematically was valuable:

1. Gas supply check
2. Flame sensor inspection
3. Ignitor verification
4. Gas valve functionality
5. Burner orifice inspection

What I brought: Understanding that these components exist and roughly what they do
What AI provided: Specific error code meaning and a structured testing sequence

First Observation: Ignitor Glows

Me: "I see the glow rod go red"

ChatGPT: "Perfect—that tells us the inducer motor, pressure switch, board, and ignitor circuit are all working. But the burners aren't lighting when gas should flow. That narrows it to just a few possibilities..."

What I brought: Ability to identify the ignitor and observe it's functioning
What AI provided: Logical elimination this single observation rules out multiple upstream failures

Second Test: Gas Supply Verification

Me: "I just checked gas stove top it's working"

ChatGPT: "Excellent—that rules out any supply or pressure issue from the gas company, so the problem is definitely inside the furnace system itself."

This is basic troubleshooting logic I already knew, but ChatGPT was helping me eliminate variables systematically rather than jumping around.

The Critical Gap: What to Measure

ChatGPT suggested listening for the gas valve click, then testing voltage if unclear. This is where my knowledge gap was widest.

Me: reaches for multimeter

What I brought: I own a multimeter and know how to use it
What I didn't know: What voltage to expect, where exactly to measure, what the reading would tell me

ChatGPT provided:

• Measure across the two wires going to the gas valve
• Expect ~24VAC during ignition sequence
• If voltage present but no gas flow → valve is bad
• If no voltage → control board isn't commanding valve

Me: "I get 26 volts at gas valve"

ChatGPT: "Perfect test—that's a huge clue. If you're measuring ~26 VAC across the gas valve leads during ignition and the ignitor is glowing, that means the control board is doing its job... The gas valve itself isn't opening (or gas isn't getting through it)."

This was the turning point. I had the measurement skill but not the domain knowledge to interpret 26VAC. Was that good? Bad? Should it be higher? ChatGPT gave me the interpretation framework immediately.

Visual Inspection: Bridging Terminology

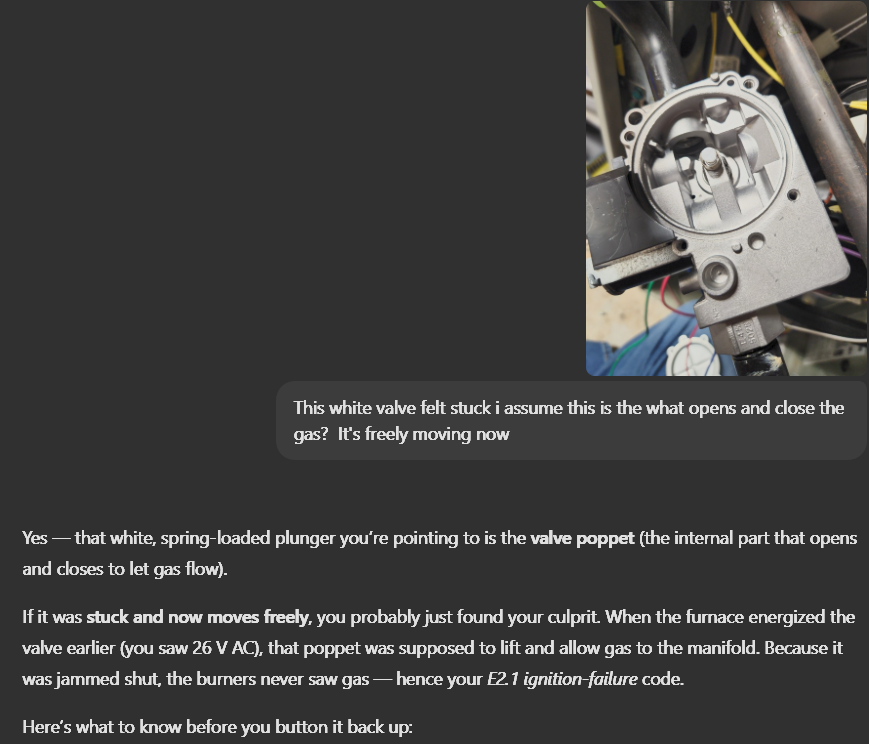

I opened the gas valve assembly and took a photo.

Me:

ChatGPT: "That white, spring-loaded plunger you're pointing to is the valve poppet (the internal part that opens and closes to let gas flow). If it was stuck and now moves freely, you probably just found your culprit."

What I brought: Mechanical intuition that this moving part controls flow
What I lacked: The term "poppet" and confirmation that freeing it was the right fix

I reassembled, leak-tested, powered up. Burners lit immediately.

Total time: 45 minutes from cold house to heat restored.

What This Reveals About AI-Assisted Repair

It's Not About Replacing Expertise. It's About Bridging Gaps!

I didn't need ChatGPT to explain what a furnace is or how combustion works. I needed:

• Specific test procedures ("measure voltage across these wires")
• Interpretation frameworks ("26VAC means the board is fine, valve is stuck")
• Domain terminology ("poppet")
• Confirmation that my mechanical intuition was correct

This is the sweet spot for AI assistance: filling domain-specific knowledge gaps for T-shaped problem solvers.

The Alternative: The Google/YouTube Time Sink

My traditional approach would have been:

1. Google "furnace error code E2.1"
2. Wade through SEO-optimized content farms
3. Find forum threads from 2012 with partial answers
4. YouTube search "furnace won't light"
5. Watch 15-minute video where the actual test procedure is mentioned at minute 11
6. Realize it's for a different furnace model
7. Search "how to test gas valve voltage"
8. Find either too-basic or too-advanced explanations
9. Piece together information from six different sources

Meanwhile: house drops from 68°F to 65°F to 62°F...

With ChatGPT: Immediate, contextual responses that maintained conversation state. No tab management. No piecing together partial answers. No watching videos to extract 30 seconds of useful information.

What I Still Had to Bring

AI didn't do the repair. I needed:

• Basic mechanical aptitude
• Tool skills (multimeter, wrenches, screwdrivers)
• Safety awareness (leak testing, power isolation)
• Ability to interpret what I was seeing physically
• Judgment about what I was comfortable doing

The AI couldn't:

• See what I was doing wrong
• Assess my actual skill level
• Verify I was leak-testing properly
• Know if I was skipping safety steps

The Efficiency Multiplier

For a T-shaped person, AI acted as an efficiency multiplier on existing knowledge:

• Without AI: 2-3 hours of research + troubleshooting (or $200+ emergency service call)
• With AI: 45 minutes total, mostly spent doing actual work, not research

The AI didn't make me smarter—it made my existing knowledge more actionable by filling specific gaps instantly.

When This Works (and When It Doesn't)

AI-Assisted Repair Works Best When:

1. You have working knowledge of the domain - You understand the basic system but lack specific expertise
2. You can verify the reasoning - The AI's logic makes sense given your general knowledge
3. You have the right tools - AI can tell you what to measure, but you need a multimeter
4. You can execute safely - You understand the consequences and can do proper safety checks
5. The problem has clear diagnostics - Systems with measurable test points work better than vague symptoms

Be Skeptical When:

1. You don't understand the underlying system - AI can't replace fundamental knowledge
2. High-consequence failures are possible - Gas, high-voltage electrical, structural
3. You can't independently verify suggestions - If you can't tell if the AI is wrong, don't trust it
4. The advice contradicts manufacturer specs - Always defer to official documentation
5. You're uncomfortable with any step - Trust your gut

The Broader Pattern

This isn't just about furnace repair. It's about how AI is reshaping the economics of T-shaped knowledge:

Old model:

• Deep expertise in one domain
• Call specialists for everything else
• High cost, high delay

New model:

• Deep expertise in one domain
• Broad working knowledge + AI for domain-specific gaps
• Lower cost, faster resolution
• Specialists reserved for complex/high-risk situations

This matters for:

• Home repair (HVAC, plumbing, electrical)
• Car maintenance
• Server troubleshooting
• Electronics repair
• Any domain with clear diagnostic procedures

The pattern is the same: general knowledge gets you 80% there, AI fills the specific 20% gap, you execute with proper safety awareness.

Lessons Learned

1. AI is a knowledge bridge, not a replacement - Most valuable when you know enough to ask good questions and verify answers
2. Conversational context is the superpower - Maintaining state across troubleshooting steps beats searching for each new symptom
3. Time-to-solution matters - 45 minutes vs. 2-3 hours is the difference between a minor inconvenience and a major problem
4. You still need judgment - AI can suggest tests, but you decide what's safe for your skill level
5. Domain terminology is valuable - Learning "poppet" doesn't fix the furnace, but it makes future searches/learning more effective

The Future of DIY

Will I use AI for future repairs? Absolutely. But with awareness of what I'm actually doing:

I'm using AI to make my T-shaped knowledge more actionable by instantly accessing domain-specific expertise I don't have. I'm not outsourcing thinking. I'm eliminating research friction.

The house is warm. I learned something new. I saved $200+. And I have a clearer picture of how AI fits into the problem-solving toolkit.

Not bad for 45 minutes and a conversation with a language model.

The Numbers:

• Total cost: $0
• Time from discovered outage to heat: ~45 minutes
• Alternative: 2-3 hours of research + troubleshooting, or $200+ emergency service call
• ChatGPT messages exchanged: ~15-20
• Domain-specific knowledge gaps filled: ~5-6 critical ones
• Things I still had to do myself: All of them
• Temperature drop avoided: House stayed above 60°F
